FN Browning M1922 -
P.626(b), P641(b) |
1st Variation WaA613
2nd Variation WaA613
2nd Variation WaA103
2nd Variation WaA140
3rd Variation
Commercial Variation |
The FN Browning M1922 was a very popular
pistol in many Armies and Police forces, till take over of Belgium
through the Germans.
Technical data:
Caliber: |
7.65
mm (P.626(b)) and 9 mm short (P.641(b)) |
Function: |
Blowback; hammer inside |
Barrel length: |
103 mm |
Weight: |
677 g |
Magazine capacity: |
9 rounds (7,65 mm); 8 rounds
(9 mm kurz) |
Production data:
Company: |
Fabrique Nationale D´Armes de
Guerre |
Location: |
Herstal |
Period: |
1940 - 1944 |
Amount: |
363,200 |
Serial numbers: |
20000 - 215000; 1 - 100000 with suffix "a", "b", or "c" |
The FN M1922 is split in 3 major
variations, according caliber and finish. Subvariation according to
acceptance marks.

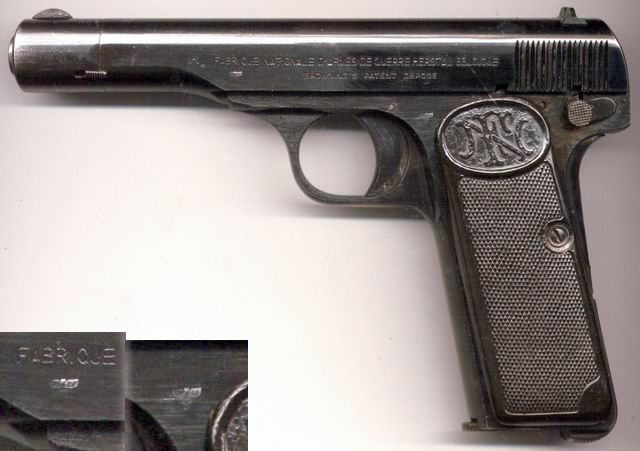

1st Variation
(9mm kurz; highpolish-finish; WaA613; approx. 3,200 pieces)
Characteristics:
Legend: |
FABRIQUE NATIONALE D´ARMES DE
GUERRE HERSTAL BELGIQUE
BROWNING'S PATENT DEPOSE |
Finish: |
highpolish-finish; blued |
Grips: |
black bakelit grips; chequered;
company-sign |
Serial
number: |
6-digit number right on frame
6-digit number inside slide
6-digit number right on chamber
6-digit number right on slide
extension (not matching) |
Acceptance stamp: |
2 x E/WaA 613 left on frame
3 x
E/WaA 613 left on slide
2 x E/WaA 613 left on chamber
1 x E/WaA 613 back of magazine |
Test
proof stamp: |
E HK left on frame
E HK left on slide
E HK right on chamber |
|
|
|

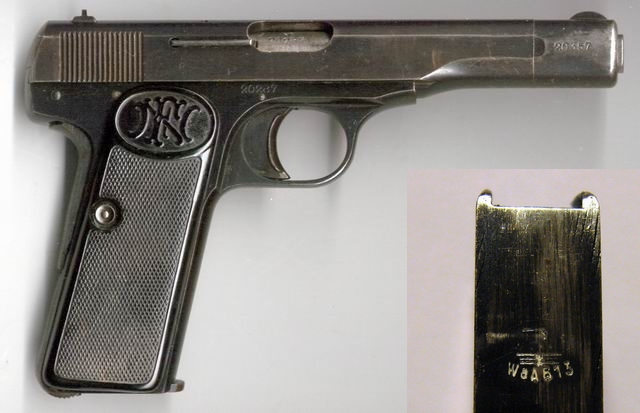

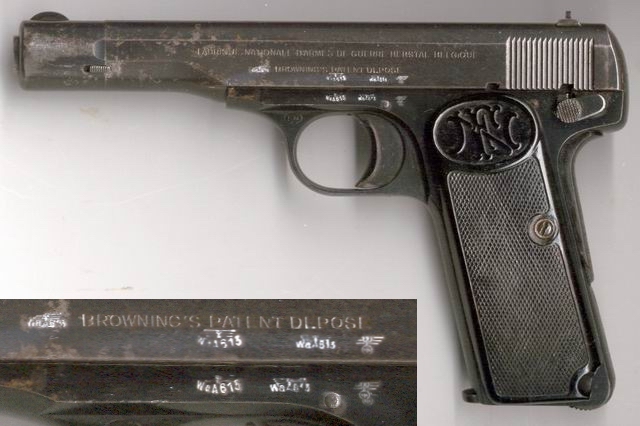

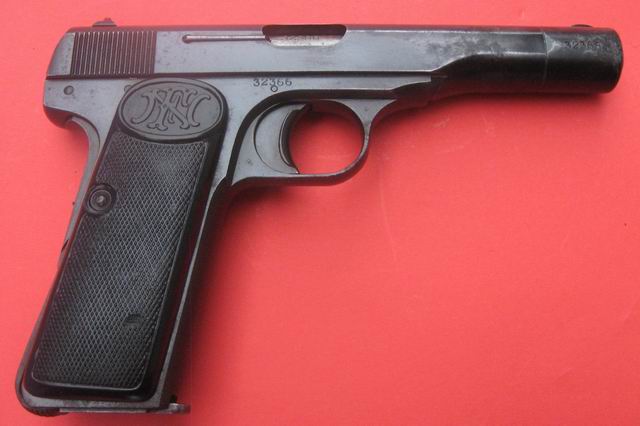

2nd Variation
(7.65mm; highpolish-finish; WaA613; approx. 3,000 pieces)
This rare variation is only found in
serial range 20000-23000 and again from 288000-289000
Characteristics:
Legend: |
FABRIQUE NATIONALE D´ARMES DE
GUERRE HERSTAL BELGIQUE
BROWNING'S PATENT DEPOSE |
Finish: |
highpolish-finish; blued |
Grips: |
black bakelit grips;
chequered; company-sign |
Serial number: |
6-digit number right on frame
6-digit number inside slide
6-digit number right on chamber
6-digit number right on slide
extension (not matching) |
Acceptance stamp: |
2 x E/WaA 613 left on frame
3 x E/WaA 613 left on slide
2 x E/WaA 613 left on chamber
1 x E/WaA 613 back of magazine |
Test
proof stamp: |
E HK left on frame
E HK left on slide
E HK right on chamber |
|
|

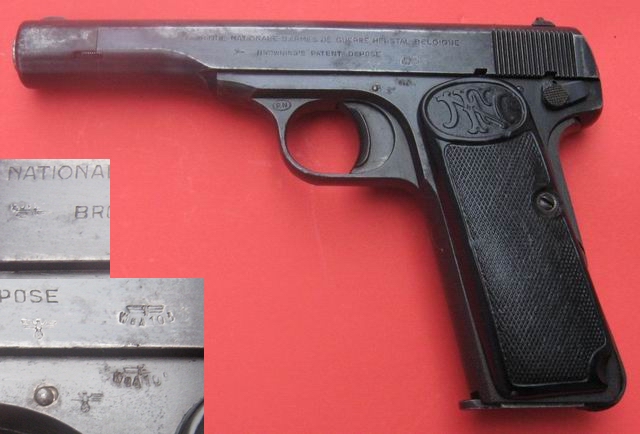

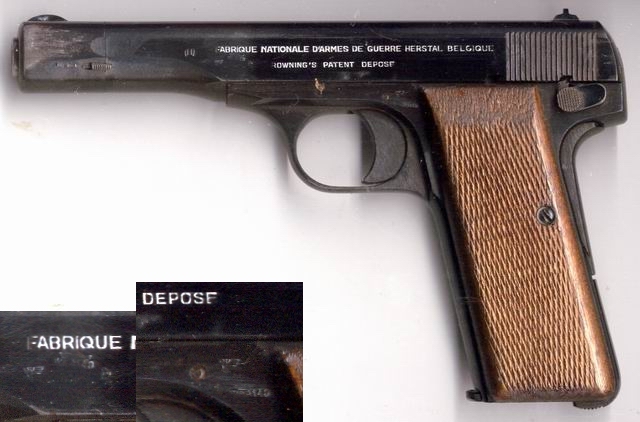

2nd Variation
(7.65mm; highpolish-finish; WaA103; approx. 32,000 pieces)
Characteristics:
Legend: |
FABRIQUE NATIONALE D´ARMES DE
GUERRE HERSTAL BELGIQUE
BROWNING'S PATENT DEPOSE |
Finish: |
highpolish-finish; blued |
Grips: |
walnut grips; chequered |
Serial number: |
5-digit number right on frame
5-digit number inside slide
5-digit number right on chamber
5-digit number right on slide
extension |
Acceptance stamp: |
1 x E/WaA 103 left on frame
2 x E/WaA 103 left on slide
2 x E/WaA 103 left on chamber
1 x E/WaA 103 back of magazine |
Test
proof stamp: |
E HK left on frame
E HK left on slide
E HK right on chamber |
|
|

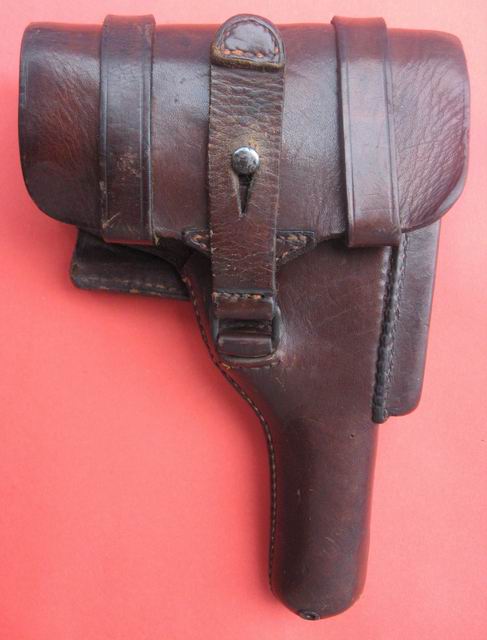

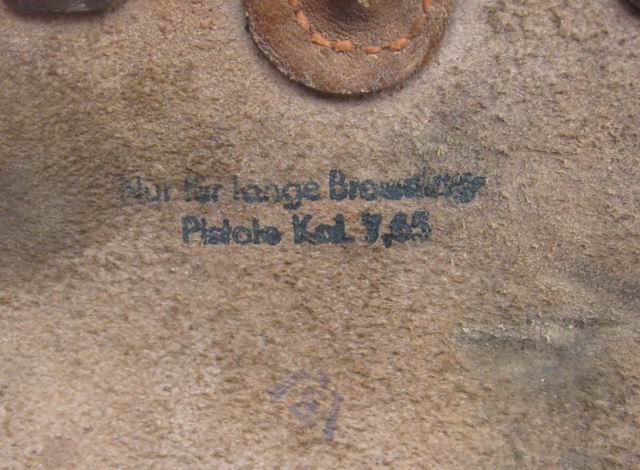

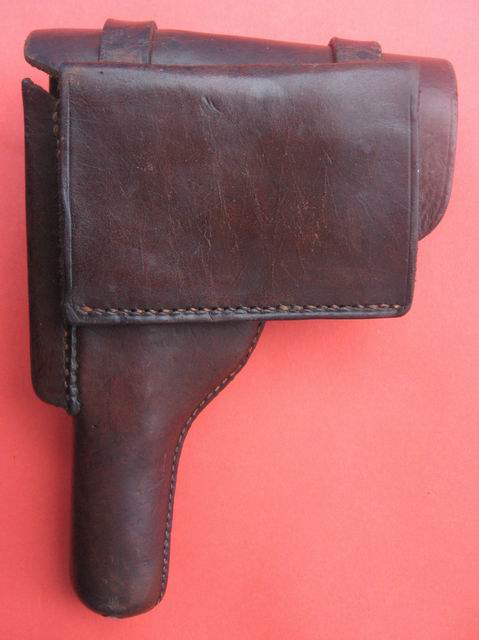

Holster
Acceptance "Luft 2" - Heinrich Krieghoff,
Waffenfabrik, Suhl, Thüringen |
|

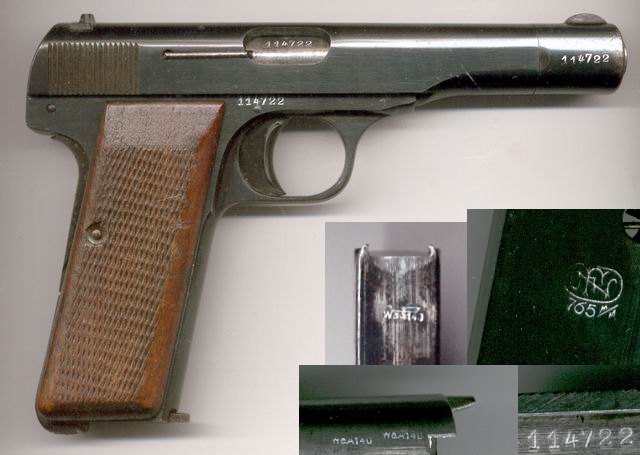

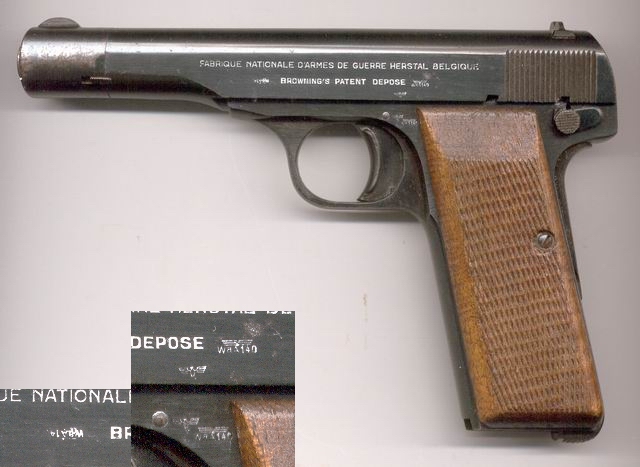

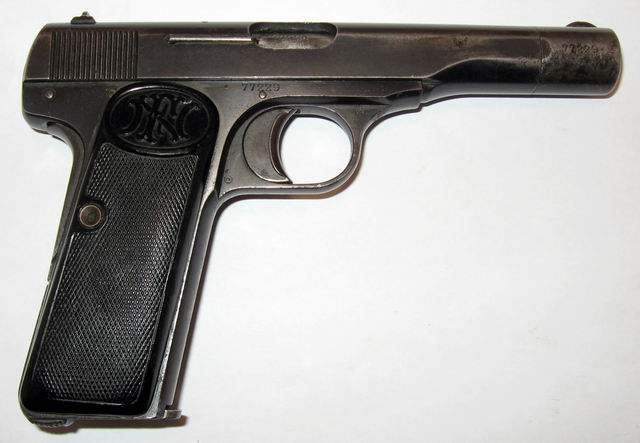

2nd Variation
(7.65mm; highpolish-finish; WaA140; approx. 90,000 pieces)
Characteristics:
Legend: |
FABRIQUE NATIONALE D´ARMES DE
GUERRE HERSTAL BELGIQUE
BROWNING'S PATENT DEPOSE |
Finish: |
highpolish-finish; blued |
Grips: |
walnut grips; chequered |
Serial
number: |
6-digit number right on frame
6-digit number inside slide
6-digit number right on chamber
6-digit number right on slide
extension |
Acceptance stamp: |
1 x E/WaA 140 left on frame
2 x
E/WaA 140 left on slide
2 x E/WaA 140 left on chamber
1 x E/WaA 140 back of magazine |
Test
proof stamp: |
E HK left on frame
E HK left on slide
E HK right on chamber |
|
|

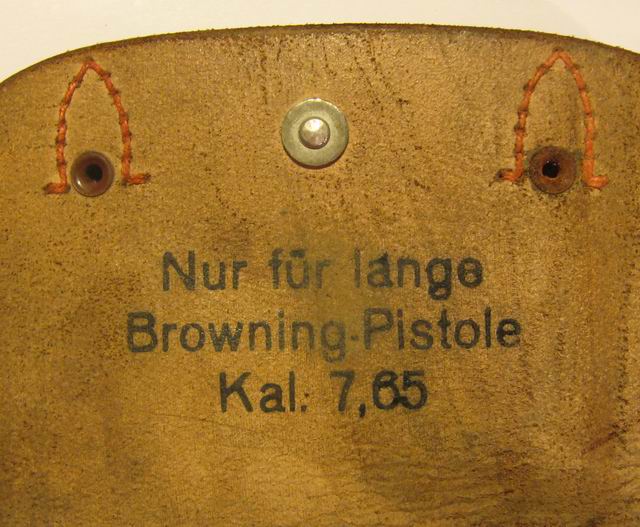

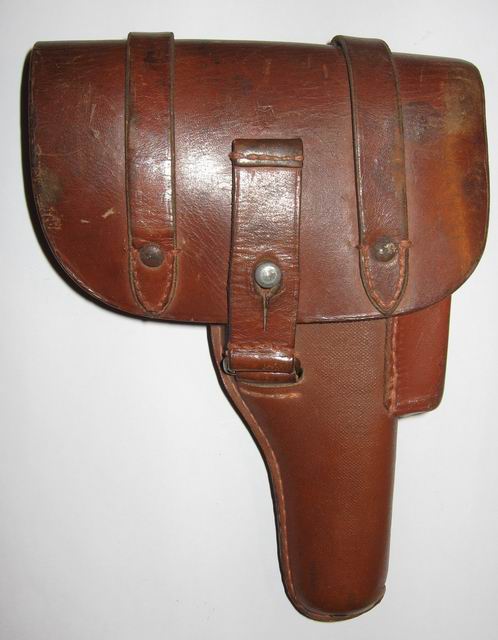

Holster "Ersatzmaterial"

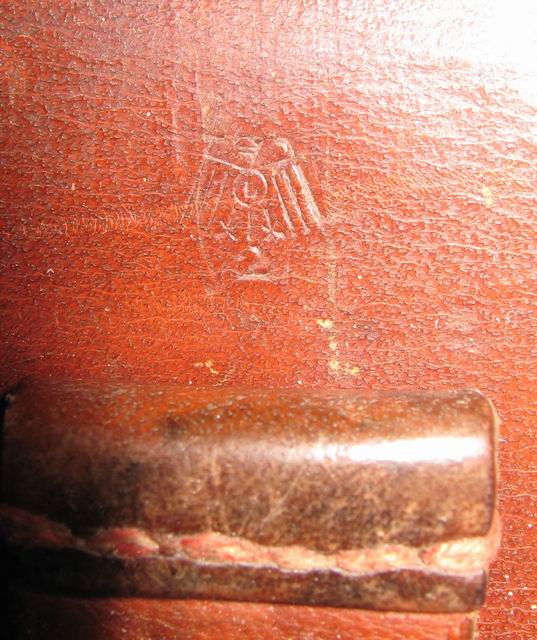

acceptance "Luft 2" - Heinrich Krieghoff,
Waffenfabrik, Suhl, Thüringen
belt loop missing |
|

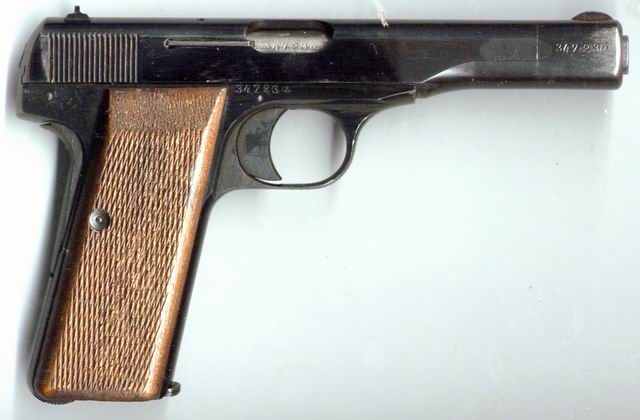

3rd Variation
(7.65mm; military-finish; approx. 230,000 pieces)
Characteristics:
Legend: |
FABRIQUE NATIONALE D´ARMES DE
GUERRE HERSTAL BELGIQUE
BROWNING'S PATENT DEPOSE |
Finish: |
military-finish
(slide near high polish-finish) |
Grips: |
walnut grips; chequered |
Serial
number: |
5-digit number with suffix right
on frame
5-digit number with suffix inside
slide
5-digit number with suffix right
on chamber
5-digit number with suffix right
on slide extension |
Acceptance stamp: |
2 x
E/WaA 140 left on slide
E/WaA 140 left on chamber |
Test
proof stamp: |
E HK left on frame
E HK left on slide
E HK right on chamber |
|
|

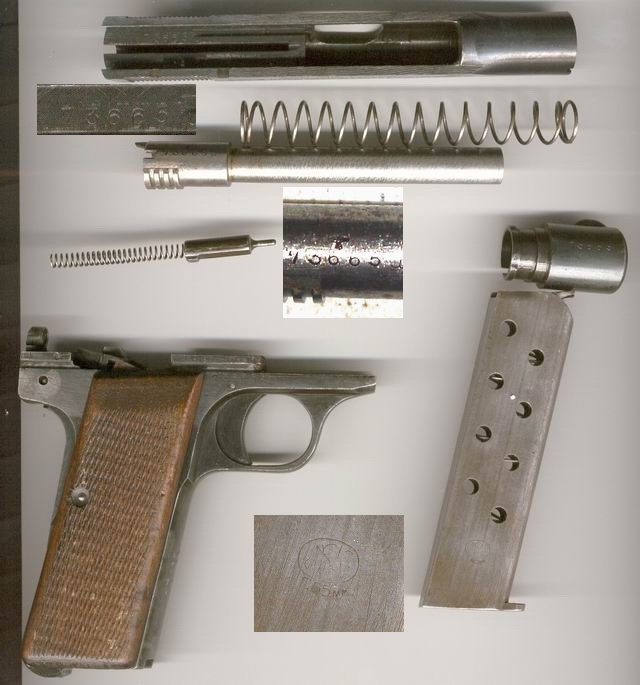

same variation but other gun,
disassembled |
|
Commercial Variation
(Caliber 7.65 mm; rough Military-Finish; only a few are known)
Characteristics:
Legend: |
FABRIQUE NATIONALE D´ARMES DE
GUERRE HERSTAL BELGIQUE
BROWNING'S PATENT DEPOSE |
Finish: |
rough military-finish, blued |
Grips: |
chequered plasticgrips with
company sign |
Serial
number: |
5-digit number with suffix right
on frame
5-digit number with suffix inside
slide
5-digit number with suffix right
on chamber
5-digit number with suffix right
on slide extension |
Acceptance stamp: |
E/WaA 140 left on chamber |
Test
proof stamp: |
E/N left on frame
E/N left on slide
E HK right on chamber
Triangel mark back on slide |

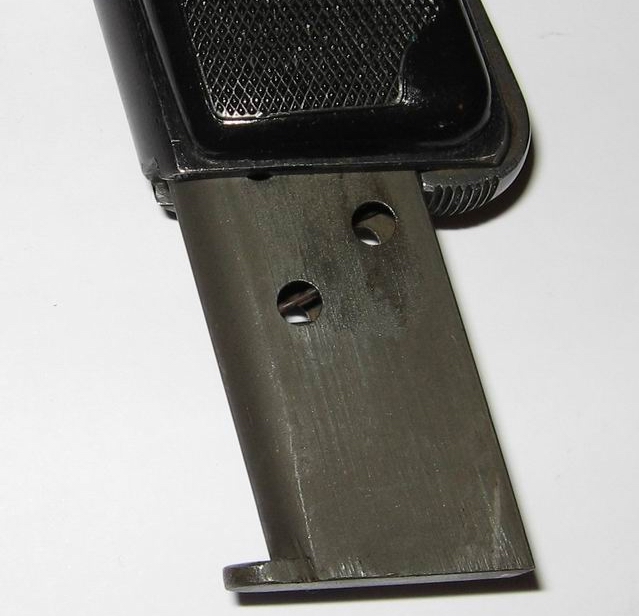

Magazine from this version is usually phosphated |
|
|
